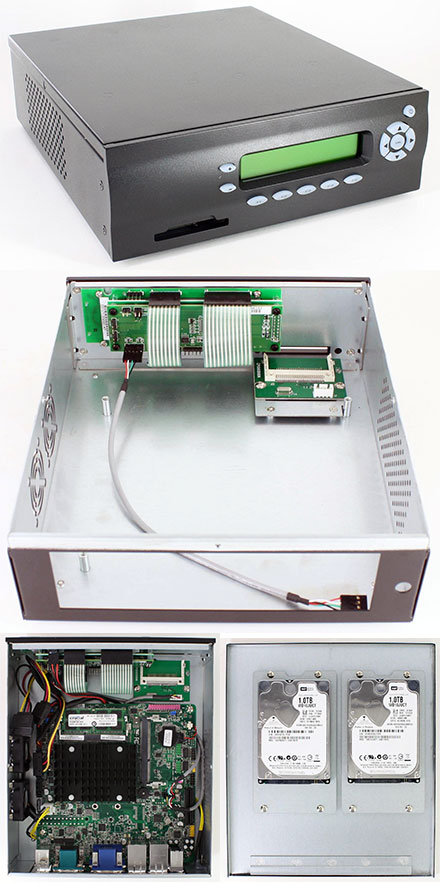

M400-LCD Mini-ITX Appliance enclosure (picoLCD 20x2, CF USB Slot, 2x HDD/SSD)
[more]
incl. 19% VAT, plus shipping
Available in 12 weeks.
Will be ordered for you.
- Up to two 2.5" HDD/SSD drives
- Intelligent USB display with 20 columns and 2 rows and 8x5 dots character size included
- Bootable (USB) Compact-Flash
- PWR button and LED
- Works with any picoPSU (not included) or mainboard with onboard power supply
- Size 25cm (w) x 6.8 cm x 23,7cm
The M400-LCD-Enclosure fits any type of mini-ITX board with standard back I/O shield. The M400-LCD-Enclsoure will work with up to two SATA 2.5" disk drives.
The M400-LCD-Enclsosure is compatible with an entire range of DC-DC picoPSU power supplies, allowing system designers to pick the right PSU for their application.
The M400-LCD-Enclosure has a front bootable Compact Flash adapter, making this enclosure perfect for systems that boot from flash (Compact Flash).
Starting with 50 units order qty. you can choose custom color for the enclosure and you can get the enclosure front without CF reader.
| Motherboard support | Mini-ITX |
| Body material | Steel / Aluminium |
| External bays | 1x Compact Flash |
| Internal bays | 2x 2.5” HDD/SSD |
| Dimensions | 250(W) x 237(D) x 68(H)mm |
| PSU support | PicoPSU-series / M3-ATX(-HV) or mainboard onboard power supply |
| Front LCD | picoLCD 20x2 (Linux/Windows SDK available) |
| Weight | 1.8kg |
| Cooling system | 2x 40x40x10mm fan (optional) |
| Data sheet | Download (PDF) |
| Data sheet | Print view |
